Leadermac Platinum LMC-623P 6 Head, CNC set up
Machine Information Sheet
| Inventory # | 5451 |
| Machine Type | Moulders |
| Manufacturer | Leadermac |
| Model | Platinum LMC-623P 6 Head, CNC set up |
| Year | |
| Region | ON |
| Voltage | //
Can be tranformed to required voltage for a nominal fee. Single phase available thru a phase converter |
| Condition | Excellent |

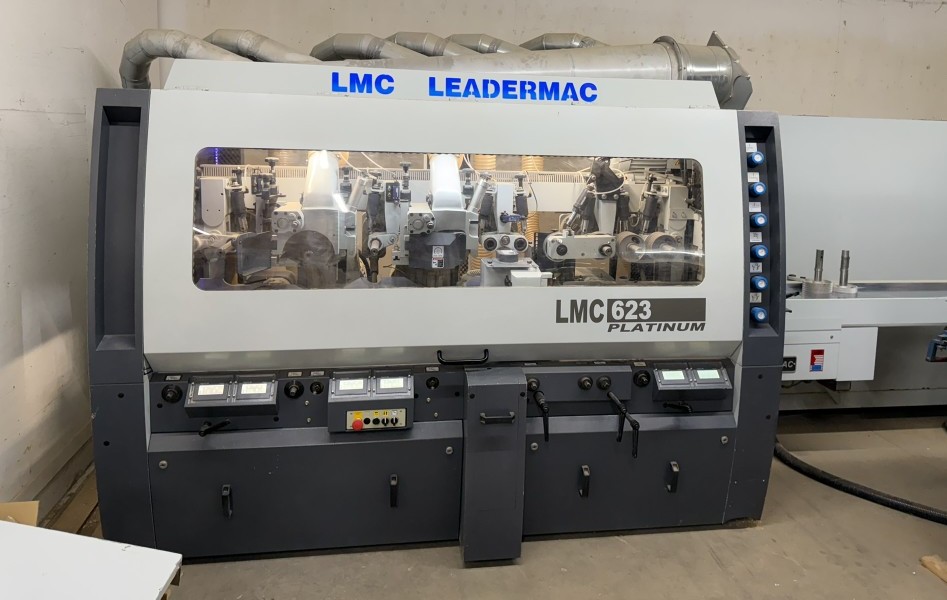

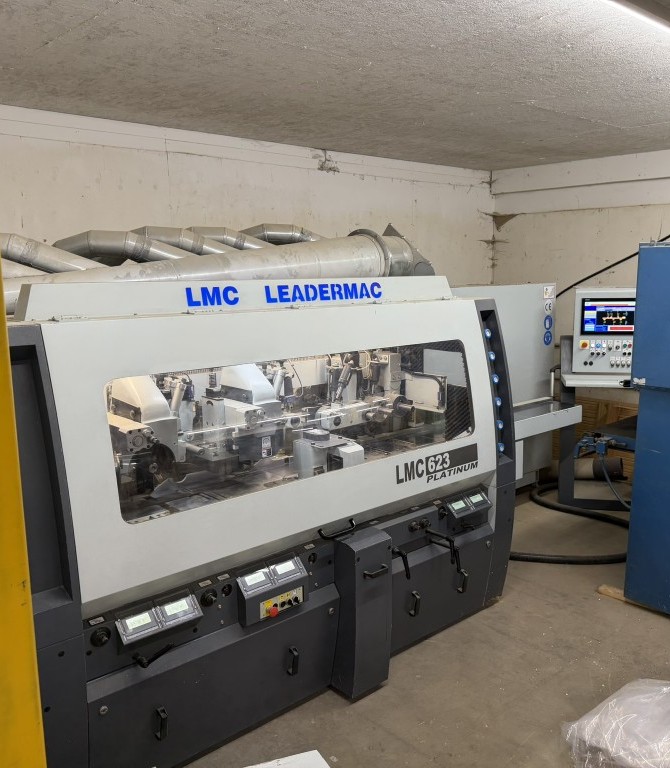

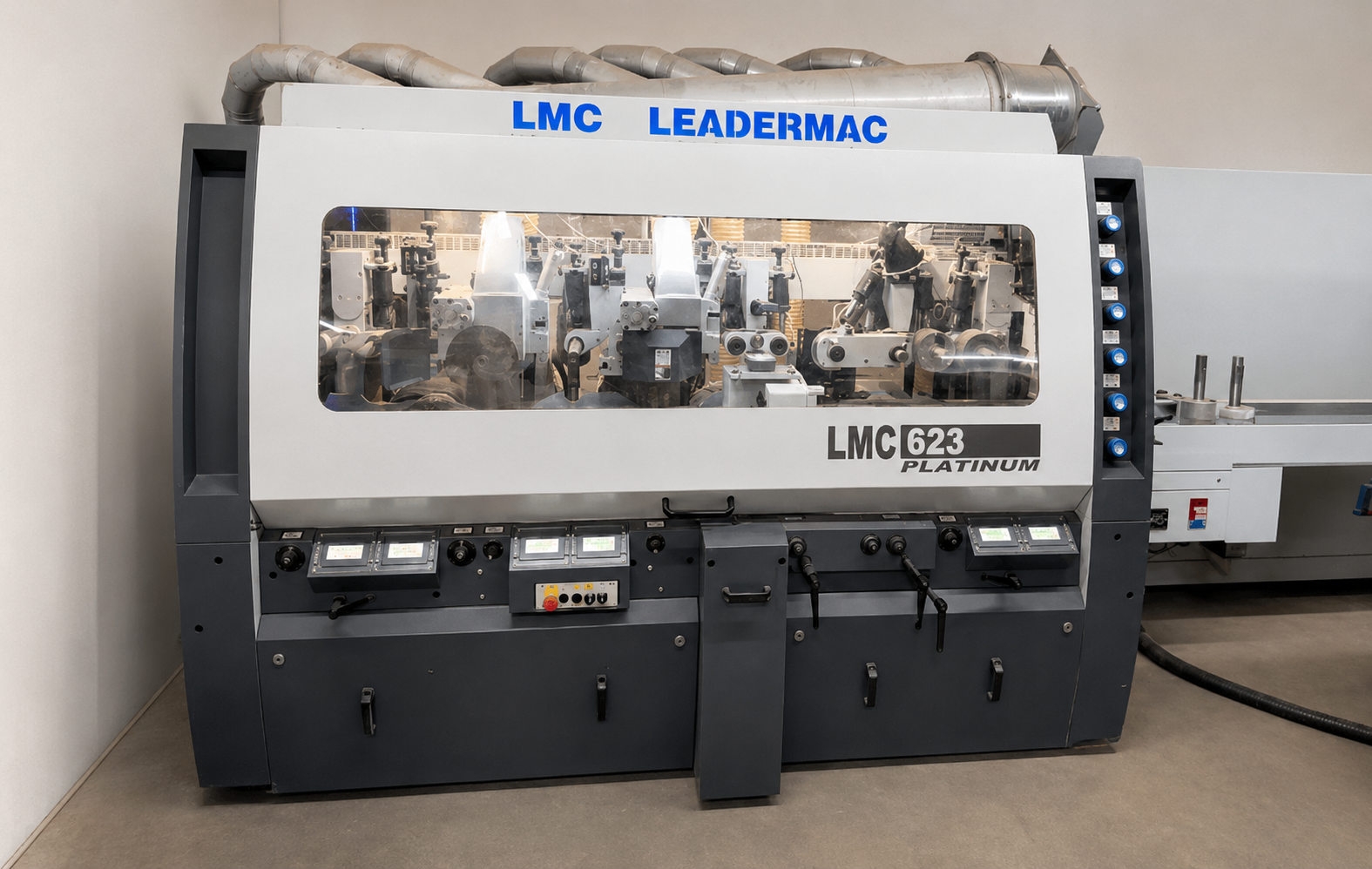

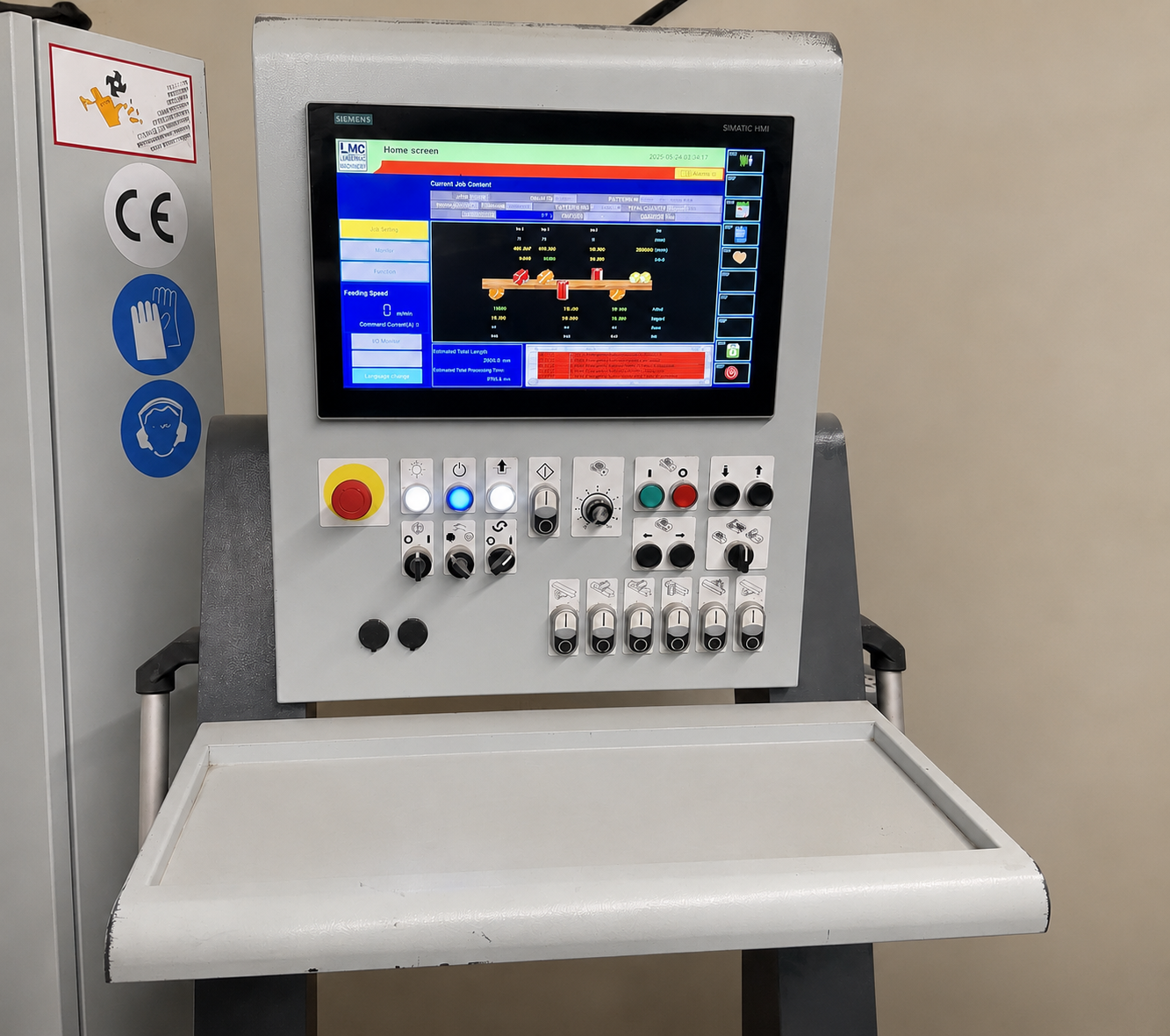

| Machine Capacities | 9 1/2in X 6in. 6 Head Heavy Duty Moulder including PROSET ? Touch Screen Control & Setworks System.

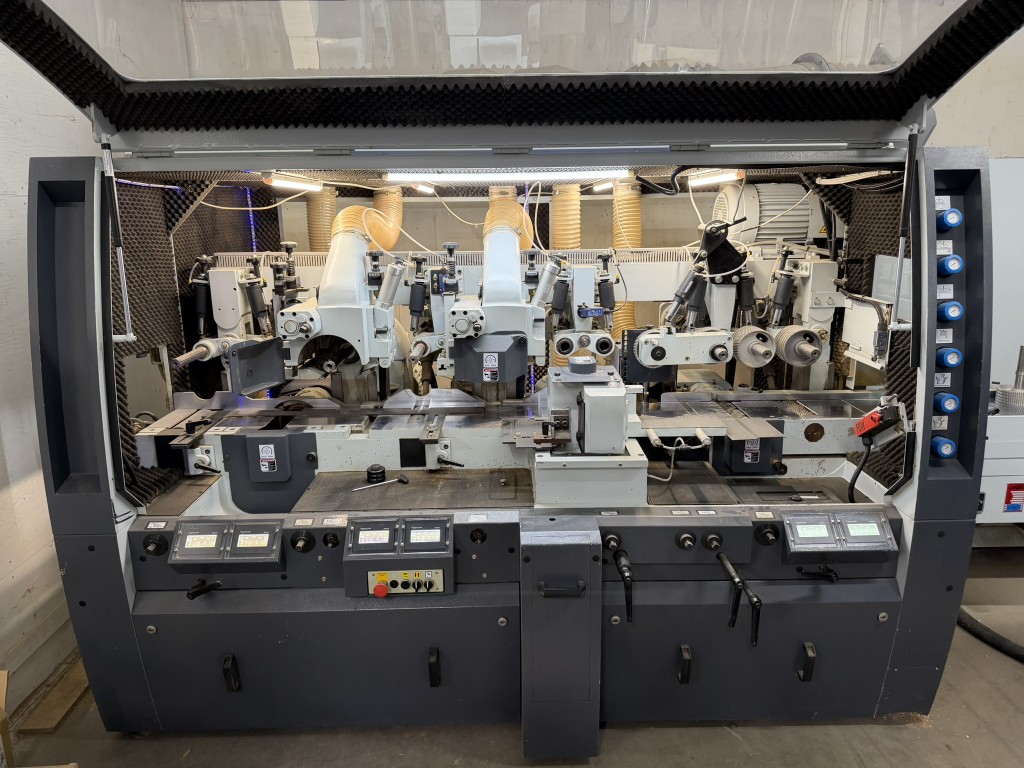

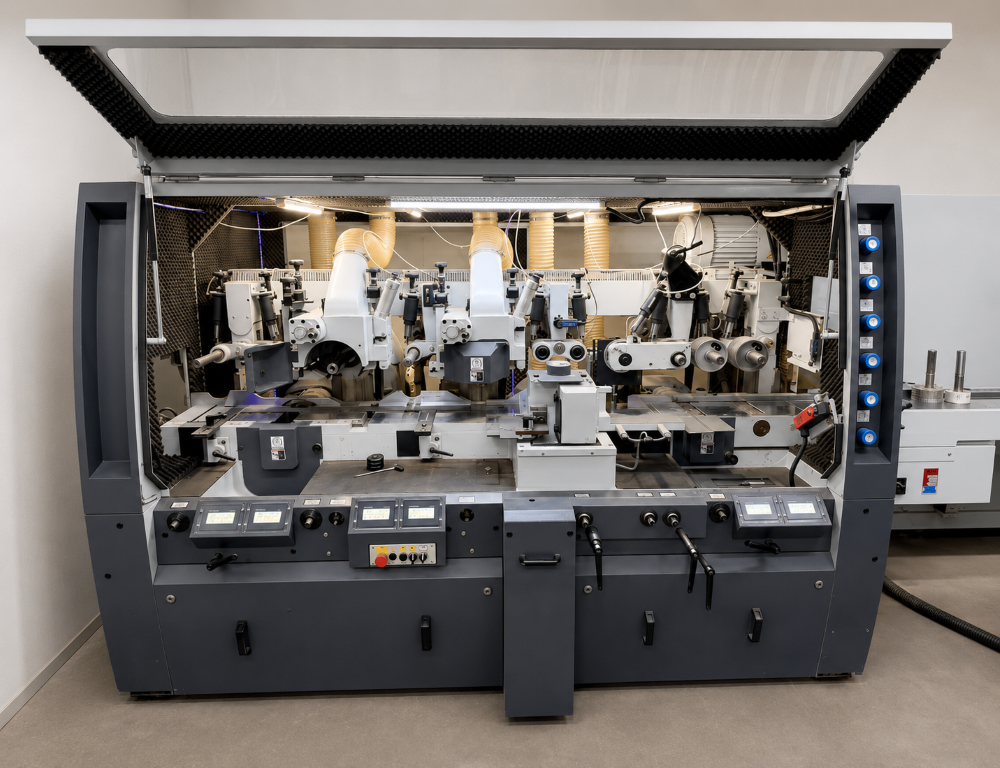

-head configuration
*bottom 15 hp,
*right side 10hp,
*left side 15hp,
*1st. top 20hp,
*2nd top 20hp,
*bottom 20 hp.

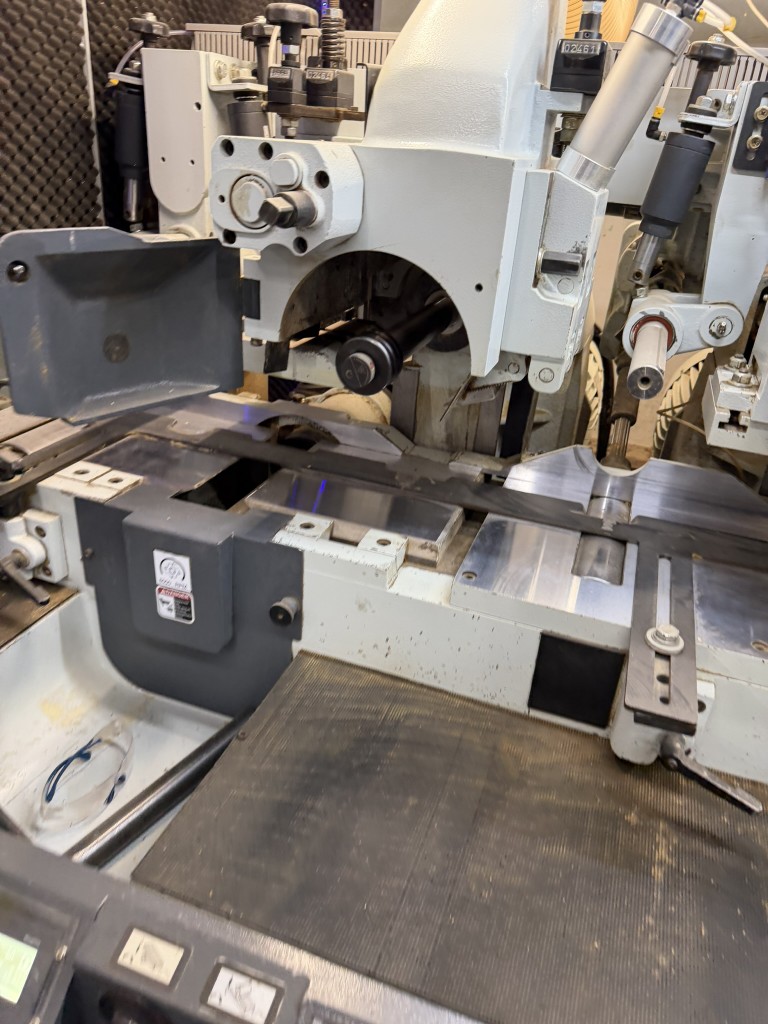

- All Spindles have vertical and horizontal adjustment
- Adjustment of all spindles from front of the moulder? Easy to operate stations
- All Spindle Axis (Vertical & Horizontal) throughout the Moulder that don?t have Setworks have
Electronic Position Readouts for Radial & Axial (vertical & horizontal), fast and accurate setting
- Readouts in Inch measurements
- Vertical Spindle ? Axial (Vertical) Adjustment ? 1.6?
- Horizontal Spindle ? Axial (Horizontal) Adjustment - .8? - Independent manual vertical adjustment to top head(s). -all spindles are 40 mm 2 sides, 2 top and I bottom excluding the first bottom which supplied with spiral carbide cutterhead and 1 13/16 spindle. DRIVE INCLUDES - Maintenance free Full Cardan Shaft Drive to feedworks for balanced drive performance, with individual worm reduction gear box to each feed roll station - Powered rise and fall to extra heavy feed support beam by 1 hp/.75 kw motor. - Upper support Beam is supported at both the Infeed and Outfeed ends on 2 large columns for best, most rigid upper beam support. - All feed rolls & pressures move w/top beam rise & fall, incl. safety switches at extreme points. - 9 Top Driven Feed Roll Shafts (each equipped with Multiple 2? wide rolls that can be quickly spaced/positioned or removed as desired) - 3 Full Width Driven Bottom Bed Rolls - 2 Piece Full width Bottom Driven Infeed Roll - All Top Rolls are Pneumatically Tensioned. There are 3 different pressurized groups to Top Rolls. Infeed, Midfeed & Outfeed. Each group has pressure gauge & regulator for varying pressure setting. This helps feeding of different materials with different conditions, smoothly and efficiently. - Top infeed rolls before first bottom head with pneumatic rise and fall by switch - Centrally located Pneumatic Pressure Gauges & Controls for Top Rolls, Chip Breakers and Roll holdover Assembly opposite rear side head on Exterior Column - All Infeed Top Rolls are Hardened, Serrated and Chromed to resist wear. - Top feed rolls after top head are Polyurethane - Intermediate Top Driven Feed Roll Station in front of rear side head with pneumatic loading for feeding minimum length work-pieces. It is easily flipped up for rear side head removal. - Top/Bottom Powered Outfeed Rolls, with bottom full width and plain - Inch forward and reverse to feed with duplicate control at top head position for fast easy setting - Feed roll diameter 5.5? / 140mm - 5 HP Variable Speed Drive with VFD 20 ? 100 fpm and Electronic Digital Speed Readout CHIPBREAKERS, FENCES & HOLDOWNS/HOLDOVERS, ETC. - Bedplates, Chipbreakers, Pressure Plates and Fences are Hard Chromed with approx. .012?-.014? thickness chrome - 2.36? (60mm) high fences - Lateral Pneumatic Pressure Rollers opposite rear/right side head spindle - Left & Right Side Head equipped with telescopic bed plates - Side guide after near side head moving with near side head - Pneumatic Top Head Chip Breakers with easily adjusted pressure control - Sectional Chip Breakers before Top Heads easily adjustable with vertical screw adjustment and digital position readouts & Top Head Chip Breaker Plates are Hard Chromed easily & quickly adjustable - Quick adjust Chromed Pad pressure (Pressure Plates) after top heads with vertical screw adjustment and mechanical digital position readout - Outfeed bed plate is easily shimmed to compensate for bottom head cut PROSET Control System - Includes PLC w/ 19? Touch Screen on Roller equipped Control Stand - 1,000 Profile Input & Memory (History)- See Touch Screen history below - 10,000 Tool Memory - Auto Setworks with AC Servo-motor-gear box coupled to position on to - Radial Axis on near Side Head(s) & Top Head(s) - when new pattern is introduced o Motorized Setworks optional extra on all other Axis - Radial & Axial - Each Axis is equipped with Ball Screws for positioning and Rotary Encoders for actual position control and true digital position readout - 6 Dual Axis Electronic Digital Readouts for each Spindle with Dual Column Readouts (1 for each axis) along the front of the machine. o Axial readouts includes PV (Present Value-Desired Head Set Position); o SV (Actual Set Value) & Head Number o Radial readouts includes PV (Present Value-Desired Head Set Position); o SV (Actual Set Value) & Actual Head Radius - Each Digital Readout - to .001? or .01mm (is Inch or metric ? on demand) - Quick Open-Reset Feature to Near Side Head(s) & Top Head(s) and Top Feed Beam(eg. if there is a material breakup in the machine then operator hits the open button and the machine auto opens ? they clear the breakup and hits the reset button and then is able to run immediately - The Touch Screen has a wealth of history information, operating elements, parts lists in order to assist the operator, including: Pattern Information, - Cutterhead Knife details ? up to 10,000 patterns, Moulder Setup Details, Moulder Information, History File, Production Schedule, Essential Spares Lists, Motor HP?s; Belt info; Gearbox info & Parts info pages. - Alarm System which monitors ? motors, limit switches & head position locking - The person responsible for moulder setup can preload the information(inch or mm) into the touch screen control re upcoming mouldings to be run prior to machine setup normally during the running of other patterns in order to minimize downtime & maximize changeover efficiency. - The Setup person when ready to change patterns pulls up the new pattern and the heads with Setworks set and the axis without Setworks has all the set size info downloaded to the Digital Readouts along the front of the machine. The axis that need to be reset will flash with the desired position until that position is set to. This all contributes to super fast head changing efficiency - Also Includes Auto Cooling System/Heat Exchanger in the electrical panel to dissipate any heat buildup in the main panel & Setworks drives - PLC Ethernet Hub, hookup to LMC-USA &/or LMC factory if required as well as Software for Remote Troubleshooting for SmartSet Control PLC & System Auto Lubrication to the feed table - 2 Point (with a Adjustable Timer & Volume Control) Centralized Grease Lubrication system to all main slides & grease points from front location(s), including Color coded Grease Nipples for proper greasing schedule comes with an trandsformer to run on 600 volt, 440/220 volt etc. went into production Feb.2022 until Mar. 2025. very little production on this moulder, lineal production recorded on controller 755417 lineal ft. |
| Sales Price | 0 |
| Reduced | No |
| Approximate Monthly Lease | $0.00No
Approximate monthly payments are based on approximate lending rate considering 1st and last month down payment, 60 month term and $1.00 residual buy back. This approximate monthly amount is for budgetary purpose only. Based on US leasing rates. |
Aldan Woodworking Machinery Inc. sells pre-owned/used machinery on a first come, first served basis. Pre-owned/used machinery is not covered under any warranty or Government requirements. It is purchased "as-is - where-is, with all faults." Descriptions and specifications are to the best of our knowledge (some information is communicated via third party sources). It is strongly recommended that the machinery be inspected prior to purchasing to confirm the condition and specification. Additional charges such as crating and loading may apply.
