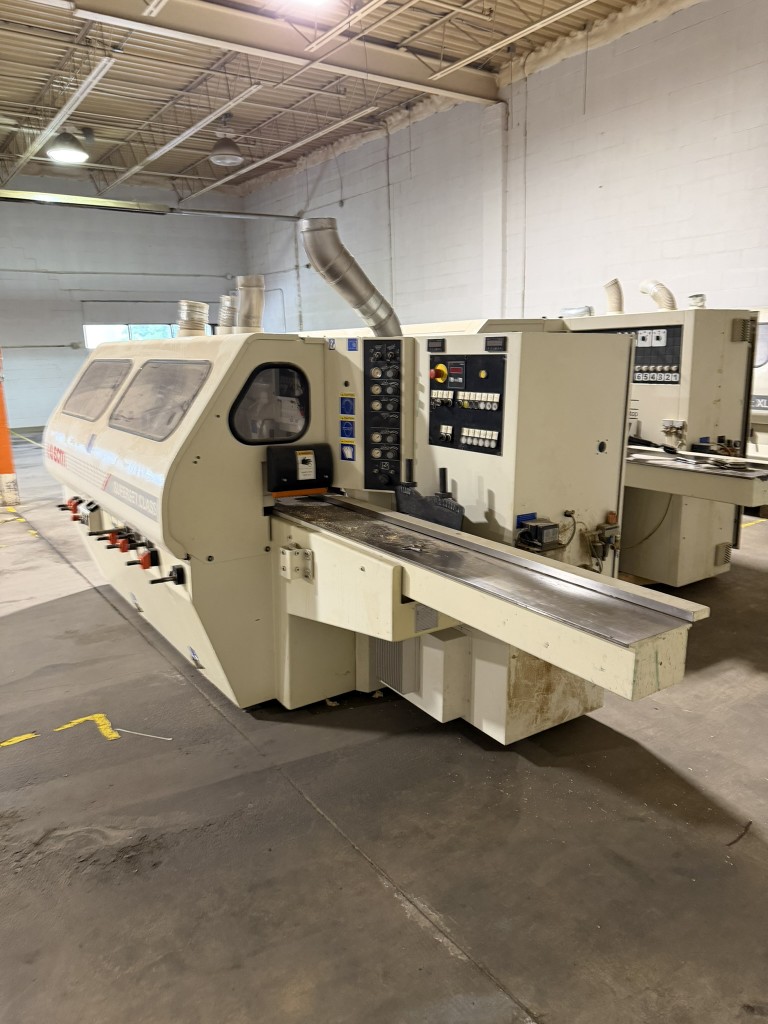

SCM Superset Class
Machine Information Sheet
| Inventory # | 5450 |
| Machine Type | Moulders |

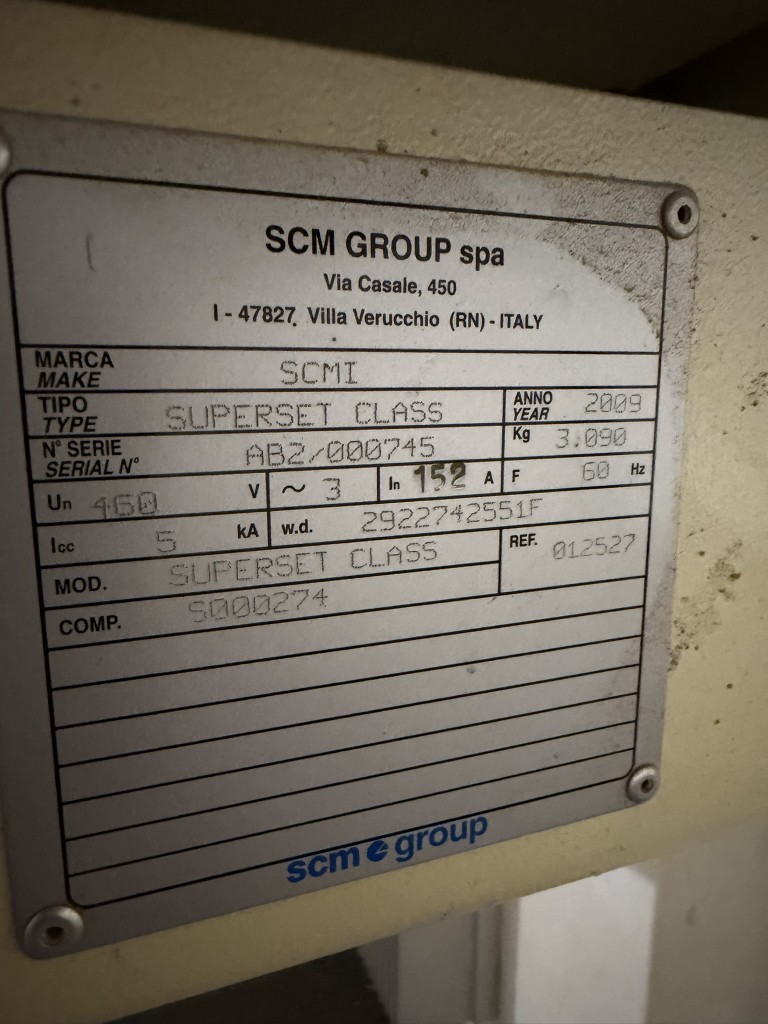

| Manufacturer | SCM |
| Model | Superset Class |
| Year | 2009 |
| Region | ON |
| Voltage | 460/3/60
Can be tranformed to required voltage for a nominal fee. Single phase available thru a phase converter |
| Condition | Good |
| Machine Capacities | 6-head moulder
4.72" x 9.44" capacity

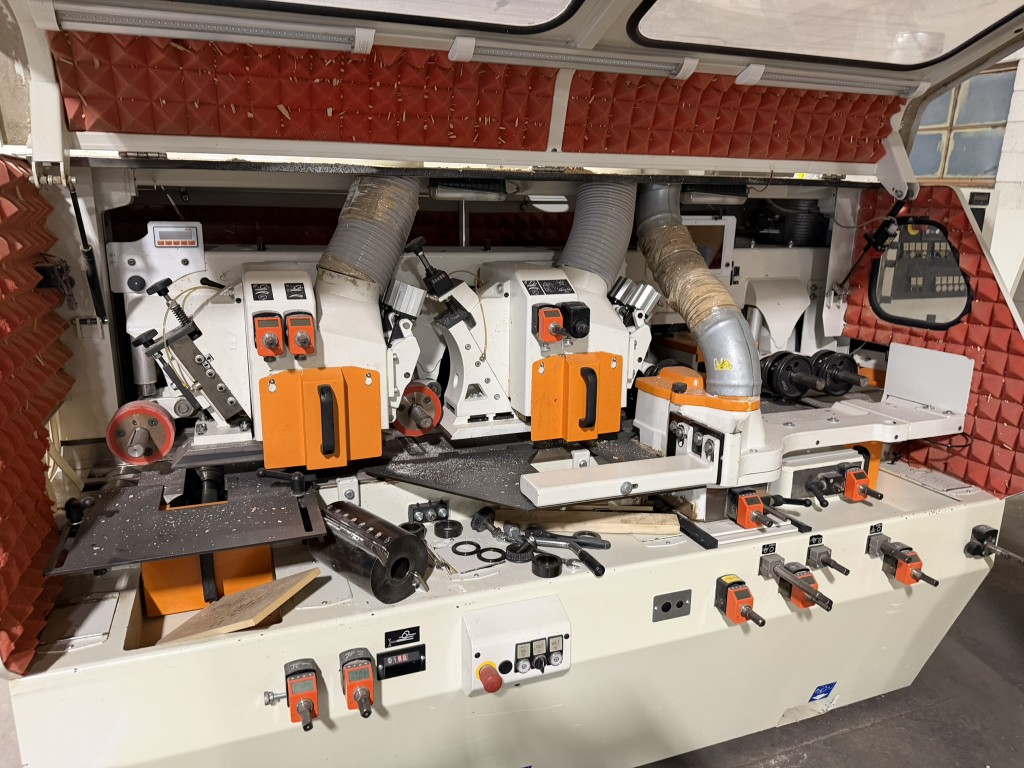

Head configuration:
Bottom 10 HP
Right 9 HP
Left 9 HP
Top 15 HP
Bottom 10 HP
All spindles 40mm diameter and 6 000 RPM
Pneumatic pressure on all feed wheels
78" infeed straightening bed
6.6 HP variable speed feed from 16 to 118 FPM
Electronic (LED) digital readout of working width and thickness Mechanical digital readouts for vertical and horizontal adjustment of all spindles except 1st bottom head
Powered top beam and top head with simultaneous or independent adjustment - enabling easy rapid set up "Set Up" rapid setting system on top and left vertical heads to accommodate different tool diameters Pneumatically loaded receding chip breakers for both top heads 2-sector pressure shoe placed after second top horizontal spindle with 40 mm stroke (2) powered feed rollers on the work table Pneumatic exclusion from control panel of powered feeding unit place before first bottom head Equipped with "Control 20 Electronic Controller" for set up The "Control 20" controls four different axes features a 2-line display industrial grade PLC and is capable of storing up to 300 programs Control 20 performs the following functions: Horizontal movement of left vertical spindle (Width) vertical movement of both top horizontal spindles (Thickness) and vertical movement of right and left vertical spindles (Axial) Manual centralized lubrication Electro mechanical motor brakes for all spindles Lighted safety enclosure Power requirements: 115 amps @ 460 volt Dust extraction requirements: 6 000 CFM @ 5 000 FPM Machine weight: 6 780 lbs |
| Sales Price | 0 |
| Reduced | No |
| Approximate Monthly Lease | $0.00No
Approximate monthly payments are based on approximate lending rate considering 1st and last month down payment, 60 month term and $1.00 residual buy back. This approximate monthly amount is for budgetary purpose only. Based on US leasing rates. |
Aldan Woodworking Machinery Inc. sells pre-owned/used machinery on a first come, first served basis. Pre-owned/used machinery is not covered under any warranty or Government requirements. It is purchased "as-is - where-is, with all faults." Descriptions and specifications are to the best of our knowledge (some information is communicated via third party sources). It is strongly recommended that the machinery be inspected prior to purchasing to confirm the condition and specification. Additional charges such as crating and loading may apply.
