Accu System H 49 Drill and Dowel 2012
Machine Information Sheet
| Inventory # | 5404 |
| Machine Type | Dowel Machines |
| Manufacturer | Accu System |
| Model | H 49 Drill and Dowel 2012 |
| Year | 2012 |
| Region | ON |

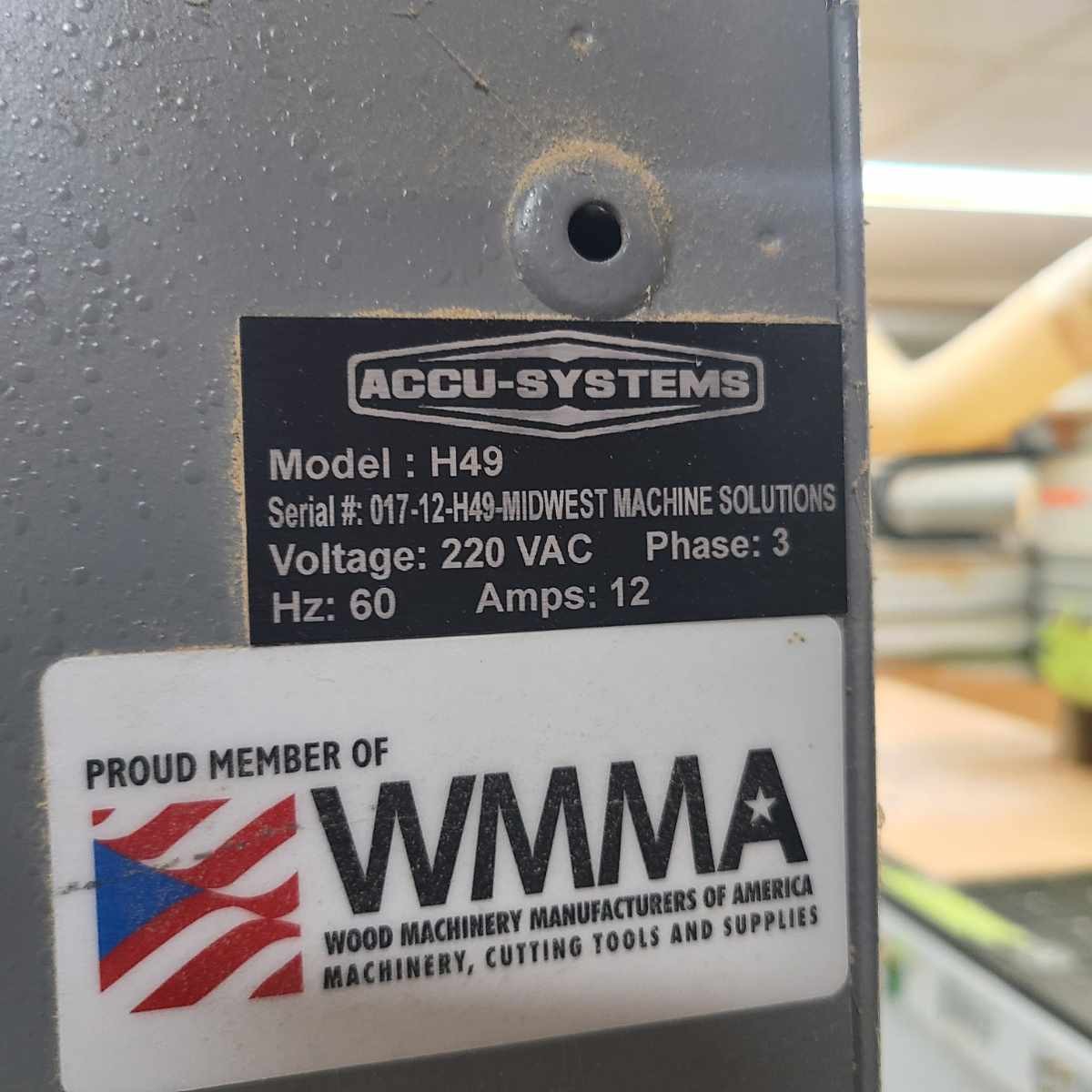

| Voltage | 220/3/60
Can be tranformed to required voltage for a nominal fee. Single phase available thru a phase converter |
| Condition | Good |
| Machine Capacities | Horizontal bore and dowel 49" wide worktable of 1/2" thick machined aluminum to ensure a true and reliable reference point 1 HP 18,000 RPM single spindle drill Cycle time of approx. 1-1/2 seconds for each bore glue and dowel insertion when the holes are spaced at 64 mm intervals (4) quick adjust vertical clamps Adjustable back fence 1/2" min. material thickness Glue inserter with water or glue capability "Direct Reject System" dowel inserter 8 mm dia. vibratory dowel bowl PC operator interface with 12" touchscreen 2 work zones allowing for pendulum processing The H-49`s operator interface has been designed to allow for quick programming at the machine Typically your operator can create and activate a new program in less than one minute |
| Sales Price | 0 |
| Reduced | No |
| Approximate Monthly Lease | $0.00No
Approximate monthly payments are based on approximate lending rate considering 1st and last month down payment, 60 month term and $1.00 residual buy back. This approximate monthly amount is for budgetary purpose only. Based on US leasing rates. |
Aldan Woodworking Machinery Inc. sells pre-owned/used machinery on a first come, first served basis. Pre-owned/used machinery is not covered under any warranty or Government requirements. It is purchased "as-is - where-is, with all faults." Descriptions and specifications are to the best of our knowledge (some information is communicated via third party sources). It is strongly recommended that the machinery be inspected prior to purchasing to confirm the condition and specification. Additional charges such as crating and loading may apply.
