Homag Weeke BHP Vantage 43M Homag Weeke BHP Vantage 43M
Machine Information Sheet
| Inventory # | 5398 |
| Machine Type | CNC Routers - Flat Table, Nesting |
| Manufacturer | Homag Weeke BHP Vantage 43M |
| Model | Homag Weeke BHP Vantage 43M |
| Year | 2009 |
| Region | AB |
| Voltage | 600/1/60
Can be tranformed to required voltage for a nominal fee. Single phase available thru a phase converter |
| Condition | Very Good |

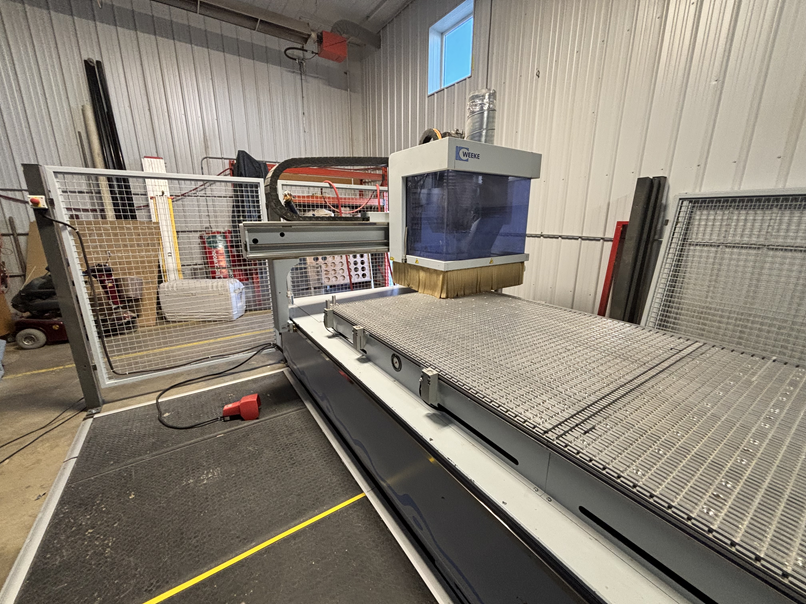

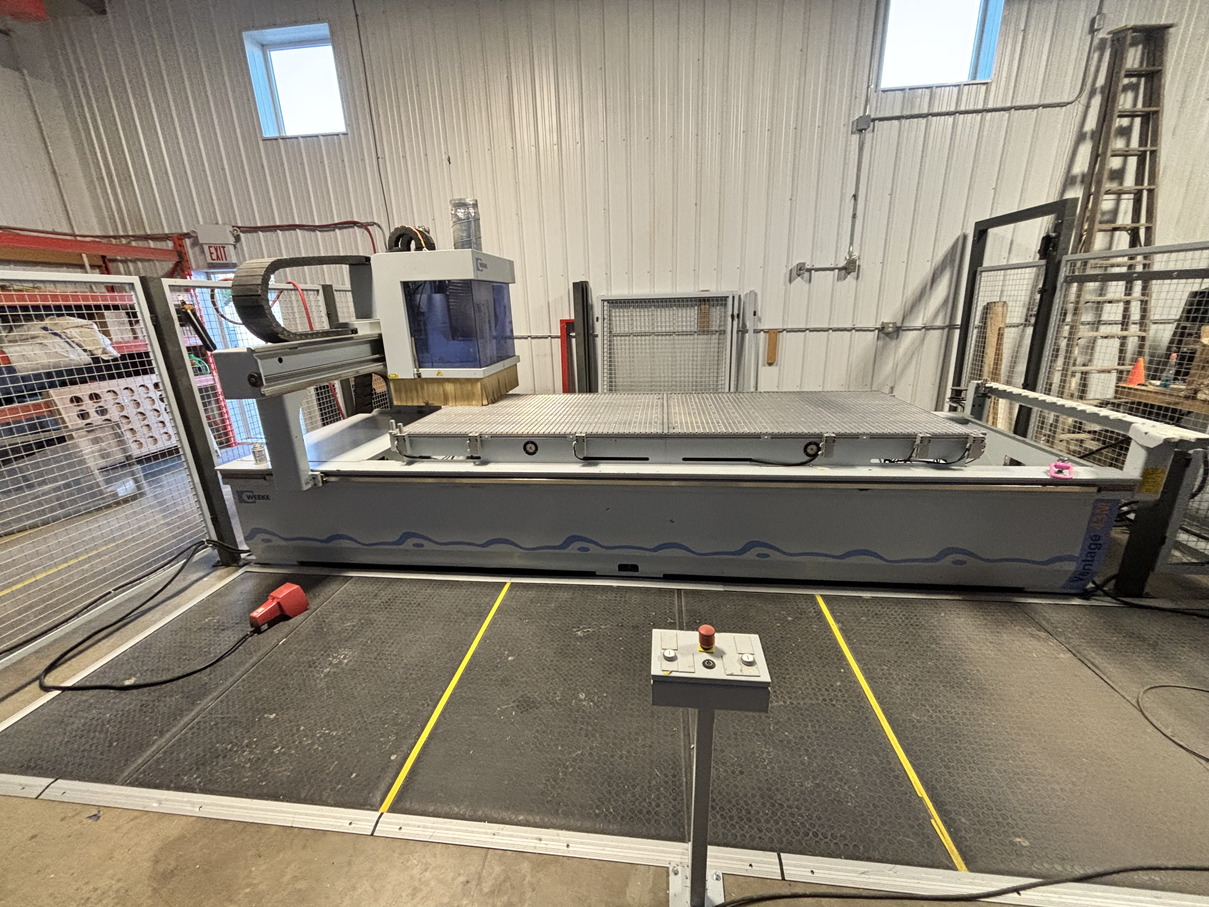

| Machine Capacities | 2009 Weeke Homag Vantage 43M 4 x 10 Nested base cnc machining centre WEEKE Optimat BHP Vantage 43M machining center, CE marked, with Auto tool changer and Multi drill bank 1 milling spindle (12 kW) HSK with liquid cooling, speed up to 24,000 rpm, 8-station rotary tool changer, 8-station pickup tool changer, drilling head with 6 (4 in X + 2 in Y) horizontal spindles and 12 (7 in X + 5 in Y) vertical spindles, pivoting grooving saw unit, axis travel X, Y, Z, 3,130 x 1,250 x 125 mm, control with Woodwop software 6.0, vacuum pump 300 m?, aluminum grooving/grid table, crosshair laser for positioning, central suction connection, safety mat system, support table LxWxH 3,130 x 1,250 mm, travel X 3,945 Y 1,970 Z1/Z2 325/185 mm, space requirement LxWxH 6,330 x 4,100 x 2,240 mm, More info and pics available upon request Spindle rotational speed: 24,000 rpm X-axis travel: 3,130 mm Y-axis travel: 1,250 mm Z-axis travel: 125 mm Power: 12 kW Current frequency: 50 Hz Voltage: 400 Number of phases: 3 Manufacturing country: Germany Type: horizontal Overall dimensions: 6,330 m ? 4,100 m ? 2,240 m |
| Sales Price | 0 |
| Reduced | No |
| Approximate Monthly Lease | $0.00No
Approximate monthly payments are based on approximate lending rate considering 1st and last month down payment, 60 month term and $1.00 residual buy back. This approximate monthly amount is for budgetary purpose only. Based on US leasing rates. |
Aldan Woodworking Machinery Inc. sells pre-owned/used machinery on a first come, first served basis. Pre-owned/used machinery is not covered under any warranty or Government requirements. It is purchased "as-is - where-is, with all faults." Descriptions and specifications are to the best of our knowledge (some information is communicated via third party sources). It is strongly recommended that the machinery be inspected prior to purchasing to confirm the condition and specification. Additional charges such as crating and loading may apply.
